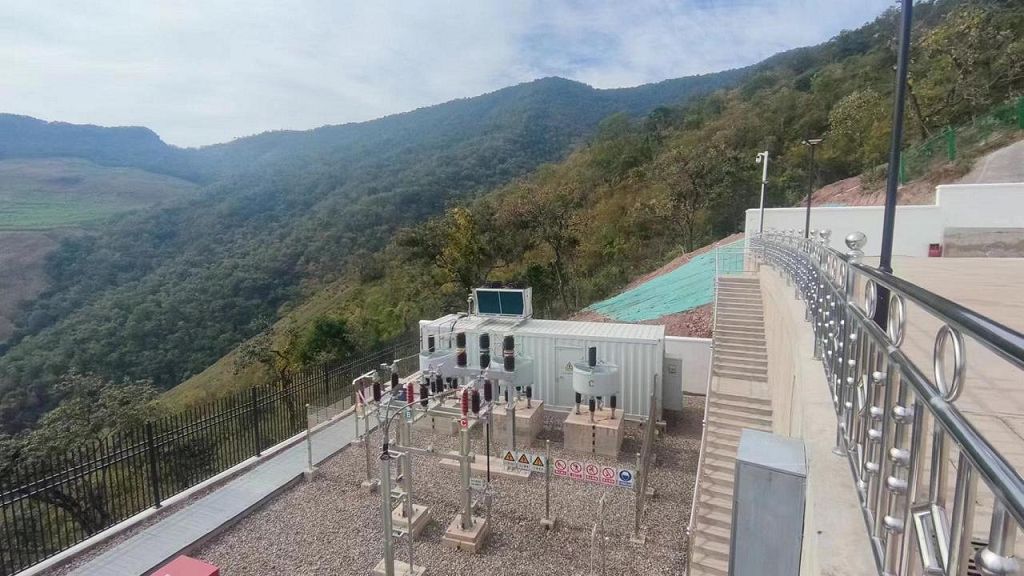

33kV Capacitor Banks

Static Reactive Power Compensation: Capacitor banks provide fixed reactive power compensation.

Simple Technology: Consists of capacitors connected in series or parallel to provide reactive power.

Advantages:

Cost-Effective: Typically less expensive than STATCOM, making them a cost-effective solution for reactive power compensation.

Simplicity: Easier to install and maintain due to their simple construction.

Reliability: Proven and reliable technology with a long history of use in power systems.

Efficiency: Provides efficient reactive power compensation with low losses.

Disadvantages:

Fixed Compensation: Provides a fixed amount of reactive power, making them less effective for systems with dynamic or rapidly changing loads.

Slow Response: Slower to respond to changes in load compared to STATCOM.

Limited Control: Cannot provide inductive compensation and may require switching operations to adjust the level of compensation.

Harmonic Issues: Can sometimes introduce or amplify harmonics in the power system.

Large Footprint: Requires more physical space compared to STATCOM, especially for high compensation levels.

33kV STATCOM

Static Synchronous Compensators (STATCOMs) are a type of Flexible AC Transmission System (FACTS) device used for dynamic reactive power compensation in high-voltage power networks. They enhance grid stability, improve voltage regulation, and support the integration of renewable energy sources. The key difference between a 33kV STATCOM and a 400kV STATCOM lies in their voltage ratings and typical applications. Here's a detailed comparison:

Voltage Level: Medium voltage (33kV)

Applications: Typically used in medium-voltage distribution networks, industrial plants, and renewable energy installations (such as wind or solar farms).

Function: Provides reactive power support to stabilize voltage and improve power quality within the local distribution network.

Features:

Grid Support: Enhances voltage stability and reduces voltage fluctuations.

Renewable Integration: Supports the integration of renewable energy sources by compensating for the variability in generation.

Industrial Use: Mitigates voltage sags, swells, and flicker in industrial environments with variable loads.

Benefits:

Improved Power Quality: Reduces harmonics and improves voltage stability.

Energy Efficiency: Increases the efficiency of power distribution in medium-voltage networks.

Scalability: Can be scaled to meet the needs of specific applications within the medium-voltage range.

Key Considerations

System Dynamics: For systems with rapidly changing loads or requiring precise voltage control, a STATCOM is more suitable. For more stable systems, capacitor banks may suffice.

Budget: Capacitor banks are more cost-effective and may be preferred if budget constraints are significant.

Space: STATCOM require less physical space, which can be advantageous in installations with space limitations.

Power Quality Requirements: If harmonic mitigation and enhanced power quality are important, STATCOM offer better performance.

Maintenance and Expertise: Capacitor banks are simpler and easier to maintain, while STATCOMs require more specialized maintenance and operational expertise.

In summary, the choice between a 33kV STATCOM and 33kV capacitor banks depends on the specific needs of the electrical system, including the dynamic nature of the load, budget constraints, space availability, and the importance of power quality.
