Medium voltage power factor correction

Medium Voltage Power Factor Correction (MV PFC) involves the application of devices and systems designed to improve the power factor in medium voltage electrical networks, typically in the range of 1 kV to 35 kV. Power factor correction at medium voltage is crucial for enhancing the efficiency of electrical power distribution, reducing losses, and avoiding penalties from utility companies.

1. Why Power Factor Correction is Important:

Power Factor Definition: Power factor is the ratio of real power (kW) to apparent power (kVA) in an electrical system. A lower power factor indicates a higher amount of reactive power, which does not perform useful work but still requires capacity in the electrical system.

Efficiency Improvement: Improving the power factor reduces the current drawn by the load, which decreases losses in the distribution network and improves overall system efficiency.

Cost Savings: Many utility companies impose penalties for low power factor. Correcting the power factor can avoid these charges and reduce energy costs.

Increased Capacity: Power factor correction allows for better utilization of the electrical system's capacity, enabling more equipment to be added without upgrading the infrastructure.

2. Methods of Power Factor Correction:

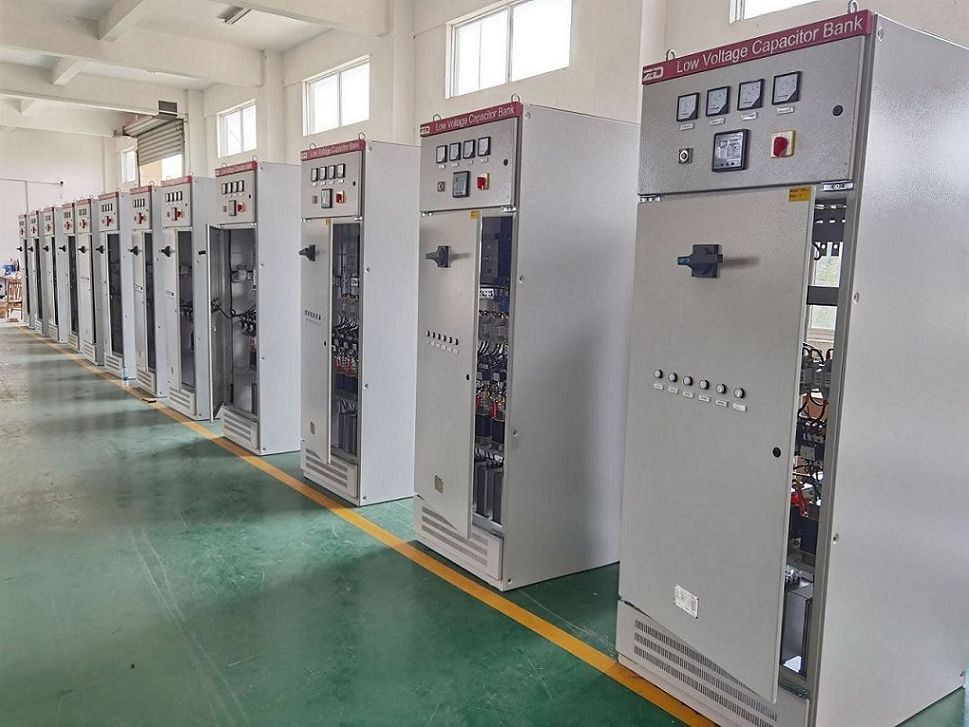

1. Capacitor Banks:
   Function: Capacitor banks are commonly used in medium voltage systems to provide reactive power compensation. By supplying leading reactive power, they counteract the lagging reactive power drawn by inductive loads, thus improving the power factor.Installation: Capacitor banks can be installed at the substation, on distribution feeders, or near large inductive loads.
2. Static Var Generators (SVG)/Statcom:
   Function: SVGs are advanced power electronic devices that provide dynamic reactive power compensation. They can adjust the reactive power output in real-time to maintain a stable power factor.Benefits: SVGs offer faster response times and more precise control compared to traditional capacitor banks, making them suitable for applications with fluctuating loads.
3. Synchronous Condensers:
   Function: Synchronous condensers are rotating machines that provide reactive power by adjusting their excitation. They are used in some medium voltage applications for power factor correction and voltage stabilization.Benefits: Synchronous condensers are capable of providing both leading and lagging reactive power, making them versatile for power factor correction and voltage control.
4. Hybrid Systems:
   Combination of Devices: In some cases, a combination of capacitor banks and SVGs or other reactive power compensation devices is used to achieve optimal power factor correction in medium voltage networks.

3. Applications of Medium Voltage Power Factor Correction:

Industrial Facilities:

Large manufacturing plants with significant inductive loads (e.g., motors, transformers, welding equipment) benefit from medium voltage power factor correction to improve energy efficiency and avoid penalties.

Utilities:

Power factor correction at the medium voltage level helps utilities maintain grid stability, reduce transmission losses, and optimize the distribution of electrical power.

Renewable Energy Plants:

Wind farms and solar plants may use medium voltage power factor correction to manage the reactive power generated or consumed by inverters and other equipment.

4. Key Considerations:

Load Analysis: A thorough analysis of the load profile is necessary to determine the appropriate size and type of power factor correction equipment.

Harmonics: The presence of harmonics in the network should be considered when implementing power factor correction, as harmonics can affect the performance of capacitors and other devices. In some cases, harmonic filters may be required.

Maintenance: Medium voltage power factor correction equipment requires regular maintenance to ensure reliable operation, particularly in harsh industrial environments.

Safety: Installation and operation of medium voltage equipment require adherence to safety standards and protocols to protect personnel and equipment.

Medium voltage power factor correction is a critical component of efficient power distribution in industrial and utility networks. By improving the power factor, it enhances system efficiency, reduces energy costs, and increases the capacity of the electrical system. Various methods, including capacitor banks, static var generators, and synchronous condensers, can be used depending on the specific requirements of the application. Proper design, installation, and maintenance are essential to achieving the desired benefits and ensuring long-term reliability.
