Static Var Generator (SVG) modules and panels are essential components in reactive power compensation systems, designed to improve power quality and stabilize voltage in electrical networks. Here's an overview of both:

1. SVG Modules

Function: These are the core components responsible for providing dynamic reactive power compensation by injecting or absorbing reactive power in response to varying load conditions.

Modular Design: SVG systems are often built with a modular approach, allowing multiple modules to work together for scalability and redundancy.

Capacity: They come in different capacities, typically measured in kVAR (e.g., 100 kVAR, 150 kVAR), and can be combined to meet higher reactive power needs.

Installation: Modules can be installed in various configurations depending on the application (e.g., wall-mounted, rack-mounted).

Rapid Response: SVG modules can respond to changes in reactive power demand within milliseconds, making them ideal for applications with rapidly fluctuating loads.

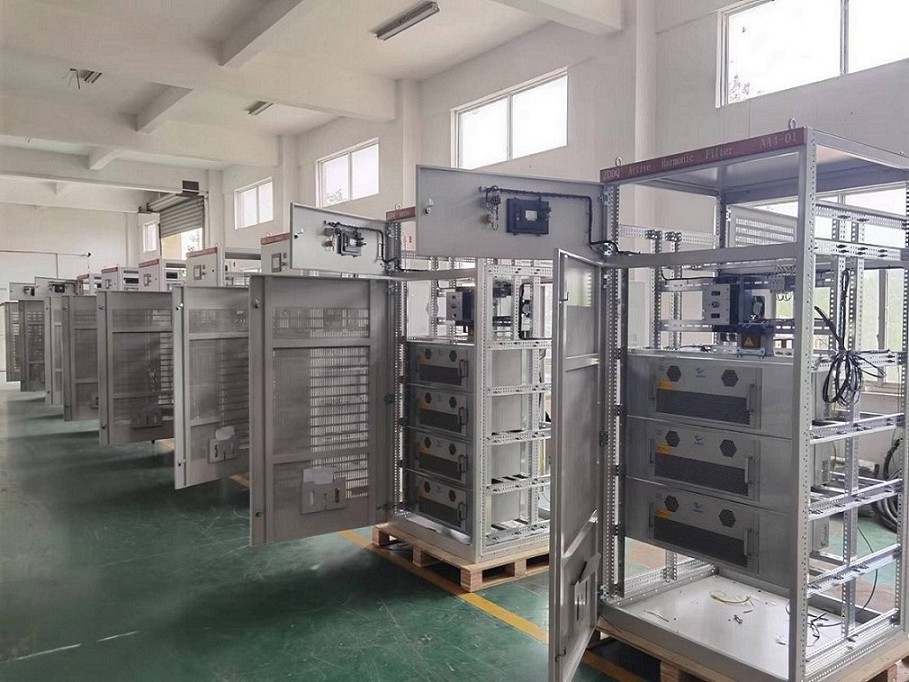

2. SVG Panels

System Integration: SVG panels are complete systems that house one or more SVG modules along with the necessary control and protection components. They integrate the SVG modules into a single enclosure for easier installation and maintenance.

Control and Monitoring: These panels often include advanced controllers, Human-Machine Interface (HMI) displays, and remote monitoring systems to manage the reactive power compensation efficiently.

Protection Features: Panels are equipped with protection devices like circuit breakers, fuses, and surge protection to ensure the safety and reliability of the system.

Scalable Solutions: For large industrial applications, multiple panels can be connected in parallel to provide high-capacity reactive power support.

Key Features of SVG Modules and Panels

Dynamic Compensation: Both modules and panels offer real-time compensation of reactive power, improving power factor and voltage stability.

Fast Response Time: SVGs can respond to changes in load within milliseconds, making them highly effective for dynamic load applications.

Space Efficiency: The modular design allows for compact installations that can fit in various spaces, depending on the setup.

Energy Savings: By improving power factor and reducing energy losses, SVG systems contribute to significant energy savings.

Applications

Industrial Plants: For managing fluctuating reactive power demand from motors, compressors, and other heavy machinery.

Renewable Energy Systems: SVG panels are used to stabilize the voltage in wind and solar power installations.

Data Centers: They help maintain power quality and prevent voltage instability caused by rapidly changing loads.

In conclusion, Static Var Generator modules and panels are integral to modern power quality management, offering flexible, scalable, and efficient solutions for dynamic reactive power compensation.
