33kv statcom

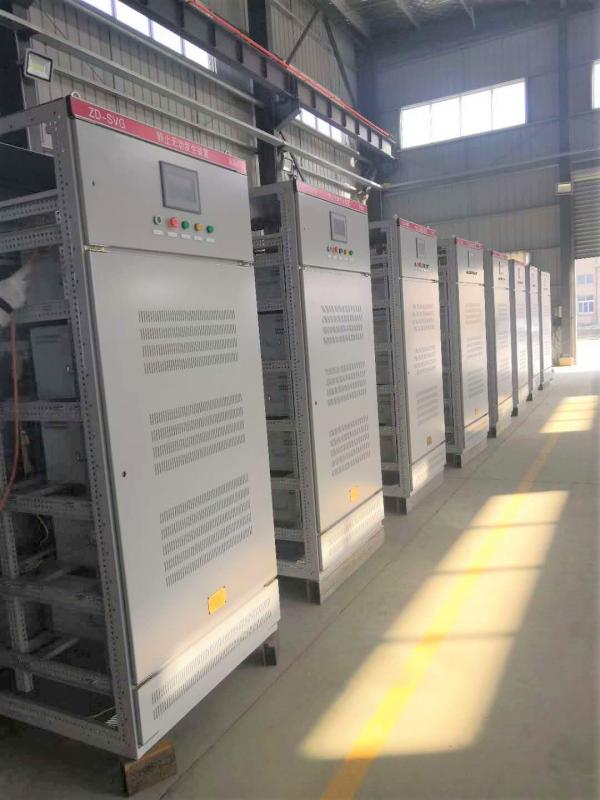

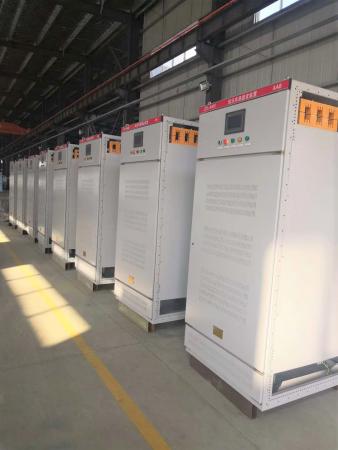

Active harmonic filtering one-stop solution for power quality management harmonic filtering, reactive power compensation, load balancing

Active harmonic filter is connected in parallel with non-linear loads, and uses one set of CT to detect the load current. It calculates each order harmonic current by FFT algorithms in its DSP microchips, and then generates a compensating current with the same amplitude but opposite phase angles to the detected harmonic current, which cancels out the original load harmonics.Not only eliminates harmonic current from the load side, but it also mitigates harmonic voltage caused by harmonic currents. The AHF system can also improve power factor (PF) and correct load imbalances in the power system.

  • Brand:

    ZDDQ
  • item no.:

    ZD-AMS
  • Payment:

    T/T,L/C
  • product origin:

    China
  • Color:

    RAL7035
  • shipping port:

    Shanghai
  • Lead Time:

    15days
  • Product Detail

Active Harmonic Filter overview

Active Harmonic Filter(AHF) is a perfect comprehensive solution to power quality problems with power grid such as harmonic wave(can filter 2nd to 50th harmonic interference completely), reactive power, and 3 phase load unbalance.

Active Harmonic Filter is connected in parallel in power grid, to detect the harmonic wave in power grid in real time, generate the reverse-phase compensation current through the converter, and dynamically filter the harmonic wave in power grid. The operation of AHF is unaffected by power grid structure and load type, and it will not produce harmonic oscillation with the system, thus perfectly realizing harmonic wave control of various loads.

Active Harmonic Filter can also realize dynamic reactive compensation, and control the capacitor switching, to improve the power factor of power grid. Meanwhile, AHF has the function of controlling the 3 phase load current unbalance, thus comprehensively solving various power quality problems with power grid.

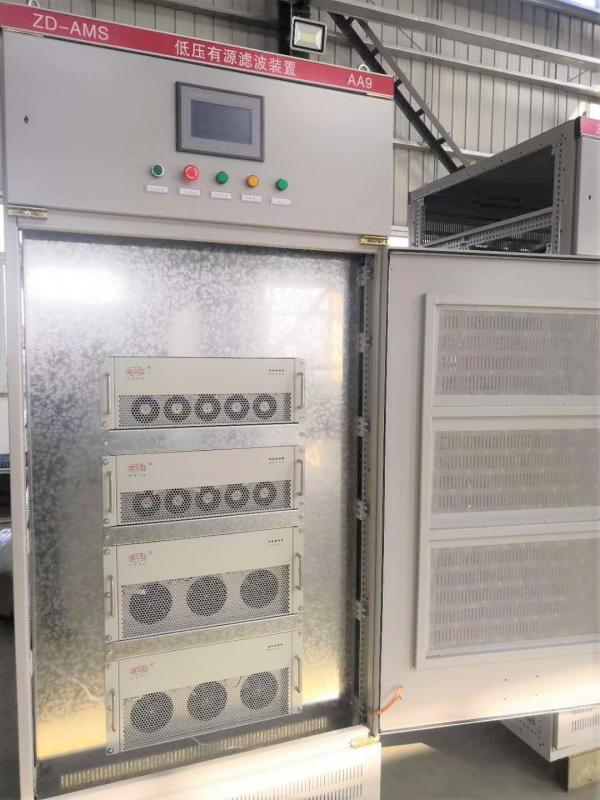

active harmonic filter modular
active harmonic filter modular

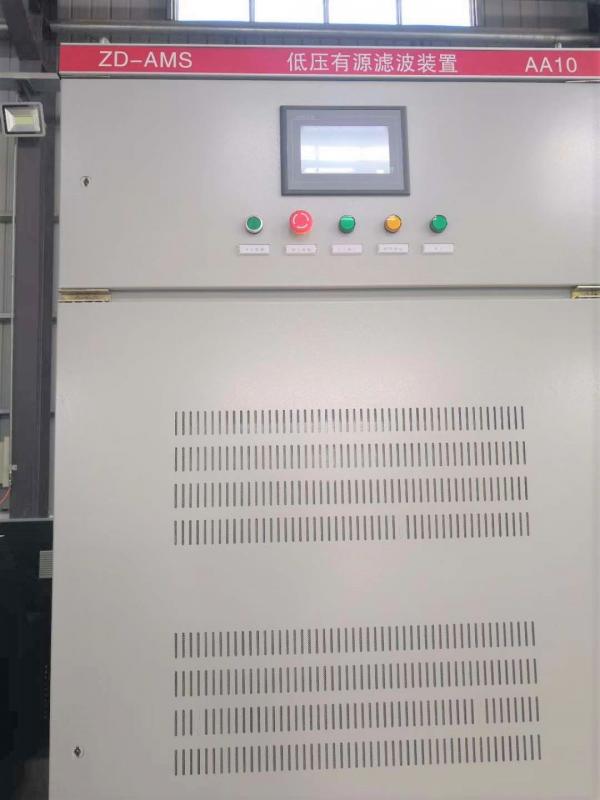

Active Harmonic Filter module Active Harmonic Filterack type APF panel


AHF Specification

Rated Voltage AC 308V-480V
Electric Connection   3P3W/3P4W
Rated Frequency     50Hz (60Hz) +/- 10%
Rated Current per Module 30Amp,50Amp, 75Amp, 100Amp,150Amp
Rated Current per Cabinet  30~600Amp (module combination)
Redundancy   Each module is an independent filtering system
Harmonic Elimination Range  2nd ~ 50th order (Selectable)
Compensation Mode Compensate Harmonics,Reactive Power,Phase imbalance
Harmonic Filtering Performance Filter up to 98% harmonics at rated load
THDv/THDi THDv<3%, THDi<5% after filtering
Reactive Power Compensation Capability  Both inductive and capacitive reactive power compensation
Imbalance Correction Capability  Mitigate negative and zero sequence
Full Response time  <5ms
Instant Response time <100us
Thermal Loss ≤3% of AHF rated capacity (kVA)

Email us hanson@chinazddq.com,or click Active Harmonic Filter Datasheet to download details.


AHF principles

Active Harmoniic Filter(AHF) is connected in parallel with non-linear loads, and uses one set of current transformers (CT) to detect the load current. It calculates each order harmonic current , and then generates a compensating current with the same amplitude but opposite phase angles to the detected harmonic current, which cancels out the original load harmonics.

Active Harmonic Filter not only eliminates harmonic current from the load side, but it also mitigates harmonic voltage caused by harmonic currents. The AHF system can also improve power factor (PF) and correct load imbalances in the power system.

active Harmonic Filter Principle
AHF Interface
Active Harmonic FIlter Principle Active Harmonic Filter Interface


AHF Features

Multifunctional: Harmonic, reactive power and imbalance compensation

High harmonic filtering rate: Up to 98%

Excellent reactive compensation: High speed, Precise (-0.99≤PF≤0.99), Step-less, Bi-directional (capacitive and inductance) compensation

Excellent imbalance correction: Both negative and zero sequence, mitigates neutral current

Wide input voltage & frequency range, adapts to tough electrical environments

Low thermal loss (≤3% of rated AHF A), efficiency ≥ 97%

High stability: Infinite impedance to grid, avoids harmonic resonance problems

Flexible application: Modular design, embedded in standard or customized cabinet

Easy installation and maintenance: Plug-in installation for AHF module replacement and expansion

Wide capacity range: 50A~600A for a single cabinet, up 10 cabinets in parallel

Environmental adaptability: -10~50°C temperature, compatible with diesel generator

Complete protection: Grid Over/Under voltage, AHF over current, over temperature, and more. All faults are recorded in the event log, which is convenient for failure analysis.


Application Fields

Industrial installations with a set of non-linear loads representing more than 500kVA (variable-speed drives, UPSs, rectifiers, etc.)

Installations requiring power-factor correction.

Installations where voltage distortion must be reduced to avoid disturbing sensitive loads

Installations where current distortion must be reduced to avoid overloads

Following are typical application industries of Active Harmonic Filter.

active harmonic for crane and conveyor system
active harmonic filter for solar power plant
active harmonic filter for oil and gas industry
active harmonic filter for electric arc furnace and metling furnace
active harmonic filter for water and wasted warter treatment

active harmonic filter for wind and pv power farm
active power filter for primary elements industry
