ZDDQ, a professional manufacturer of power factor correction and harmonic mitigation field since 2001. Today let's talk about power factor correction and energy saving.
Power factor correction (PFC) is a technique used to improve the power factor of electrical systems. The power factor is a measure of how effectively the current is being converted into useful work in an AC electrical system. A low power factor indicates that a portion of the electrical power is being wasted and not effectively utilized, resulting in increased energy consumption and higher electricity bills. By implementing power factor correction, energy savings can be achieved. Here's how it works:
1. Understanding Power Factor: Power factor is the ratio of real power (kW) to apparent power (kVA) in an AC electrical system. It represents the efficiency of the power flow. Power factor values range from 0 to 1, with 1 indicating a perfect power factor where all the power is used effectively. A lower power factor means that more reactive power is present in the system, resulting in inefficient energy usage.
2. Identifying Low Power Factor: Low power factor is typically caused by inductive loads such as electric motors, transformers, and fluorescent lighting. These loads draw reactive power, which is the power required for the magnetic fields to operate, from the electrical grid. The reactive power causes the current waveform to be out of phase with the voltage waveform, resulting in a lower power factor.
3.

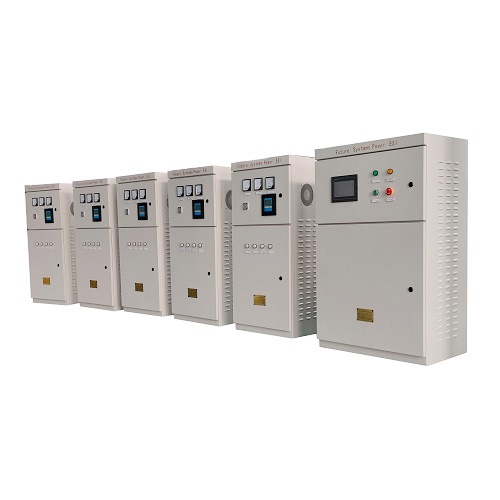

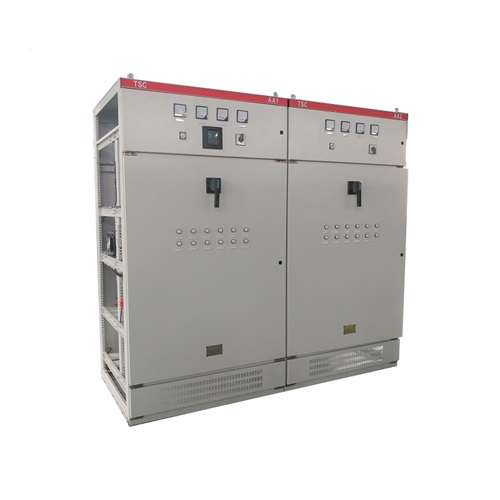

Power Factor Correction Capacitors: Power factor correction capacitors are devices used to compensate for the reactive power drawn by inductive loads. These capacitors provide reactive power locally, reducing the reactive power demand from the grid and bringing the power factor closer to unity (1). The capacitors are connected in parallel with the inductive loads and have a capacitive effect that cancels out the inductive effect, resulting in a higher power factor.
4. Benefits of Power Factor Correction: Implementing power factor correction offers several benefits, including:
a. Energy Savings: Power factor correction reduces the reactive power demand from the grid, which reduces the overall current flowing through the distribution system. This leads to reduced losses in wiring, transformers, and other equipment, resulting in energy savings. The reduced current also means that smaller conductors and equipment can be used, further increasing energy efficiency.
b. Improved Voltage Stability: Power factor correction helps stabilize the voltage levels in the electrical system. By reducing the reactive power demand, voltage drops and fluctuations are minimized, ensuring that the electrical equipment operates within the prescribed voltage limits. Stable voltage levels lead to improved equipment performance and reduced downtime.
c. Increased System Capacity: Power factor correction helps optimize the capacity and efficiency of the electrical distribution system. By reducing the reactive power component, more active power (kW) can be utilized within the existing infrastructure, enabling additional loads to be connected without the need for infrastructure upgrades.
5. Implementation Considerations: When implementing power factor correction, it is important to conduct a thorough analysis of the electrical system to determine the appropriate capacitor value and configuration. Ideally, the power factor should be corrected close to unity without overcorrection, as an excessively high power factor can also lead to issues. Consider consulting with a qualified electrical engineer or power systems expert to assess the system and design an optimal power factor correction solution.
By implementing power factor correction, organizations can minimize energy waste, reduce electricity costs, and enhance the overall efficiency and reliability of their electrical systems.
