High voltage Automatic Capacitor banks

High votage automatic capacitor banks/reactive power compensation systems are used everywhere that motors are still directly operated without power electronics, or other consumers with a low inductive cosφ place strain on the grid with reactive power in addition to their active-power requirements. Local supply of this reactive power by means of compensation systems relieves the burden on the supply grid and reduces losses.

  • Brand:

    ZDDQ

  • item no.:

    ZD-GWJ-H/6-C

  • Payment:

    LC,TT

  • price range:

    1000 - 30000/$1

  • product origin:

    China

  • Color:

    RAL7032

  • shipping port:

    Shanghai

  • Lead Time:

    15days
inquiry now
  • Product Detail

Overview of HV Capacitor banks

Automatic Capacitor banks based on Static Var Compensator(SVC) aims to improve power factor and enhence power quality, utilising capacitors to offset usually inductive loads(motors).APFC system  increase the efficiency of power supply, delivering immediate cost savings on electricity.

ZD-GWJ Series High voltage automatic capacitor banks : can detect the reactive power needed by the system in real time,compare it with the set value, carry on the automatic intelligent capacitor-switching on/off, make the reactive power of the system achieve dynamic balance, in order to improve the power factor of the system, stabilize the system voltage.

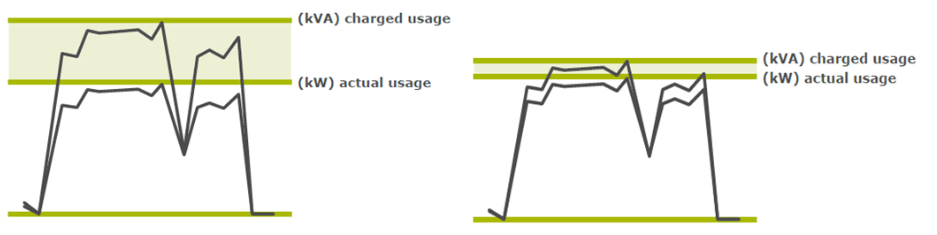

Following are effect before and after power factor correction,

contrast before and after power factor correction

Specifications of HV Capacitor banks

Name

Medium voltage Automatic Capacitor banks

Model

ZD-GWJ-H/6-

Rated Voltage 6Kv~35Kv
Connection Type     Three-phase 3 wire
Rated Frequency
 50/60HZ
Step Capacity 100~1200kVAr
Rated Capacity/panel
 2400kVAr
Power Factor
 0.9
Switch
 Vacuum Contactors
Capacitance Tolerance
 -5%, +10%
Reactance ratio
 6% 12% or customerized
Switching
 Automatic switching Capacitors
Storage temperature
 -40~85 °C
Working temperature
 -25~55 °C
Humidity
 ≤95%,non-condensate
Dimension (W*D*Hmm)
 1200*1600*2400
Installation
 Indoor, free standing
Altitude
  <1500m without de-rating
Certification
 ISO9001,CCC, Type Test Report

high voltage automatic capacitor banks
 capacitors anf filters banks
            HV APFC PANEL                                                Capacitors and Reactors

Features of HV Capacitor banks

■Fast return on investment through lower power costs

Power factor correction reduces the reactive power in a system. Power consumption and power

costs drop in proportion.

■Effective use of installation

An improved power factor means that an electrical installation operates more economical (higher

effective power for the same apparent power).

■Improved voltage quality

■Reduced voltage drops

■Optimum cable design

Cable cross-sections can be reduced with improvement of power factor (less current). In existing

installations for instance, extra or higher power can be transmitted.

■Reduced transmission losses

The transmission and switching devices carry less current, i.e. only the effective power, meaning

that the ohmic losses in the leads are reduced.


Applications

ZDDQ automatic capacitor banks are widely used for fluctuating loads such as motors, variable frequency drives, melting furnace from Steel Rolling mills,Chemical industry,Cement plant, Suger plant, Textile, Hospitals, Hotels, Building segment,Automobile industry,Oil and gas industry,public grid etc.
